What’s the Primary Motive Behind Wire Rope Lubricators?

0
120

Companies who recognize the significance of correct wire rope lubricators and implement best practices have an enormous advantage in the market. They can, for instance, extend the life of wire rope as well as reduce costly replacements and enhance the safety of their employees, click over here to know more. The elements that influence the life of wire ropes and their performance include the type of operation, care and the environment. Two issues are corrosion and wear.

Stress-loading, shock-loading, heavy load, jerking and rapid deceleration or acceleration are all factors that can contribute to wear on wire rope. In the same way, acid fumes sulfur, salt brines gasses, salt air and humidity are all factors that are a factor in corrosion. Additionally, high temperatures can intensify the effects on these conditions. The correct type and amount of lubricant can safeguard the wire rope from degrading regardless of the reason.

Important performance qualities to be looking for in a lubricant for wire rope include wear resistance and corrosion prevention. For resistance to wear, search for products that have anti-wear additives, which have been proven to work on the ground. To ensure strong corrosion protection in harsh environments, look for lubricants for wire rope that have salt spray resistance levels that exceed 60 hours, and humidity cabinet values that are greater than sixty days. Lubricants were developed specifically to satisfy or exceed a range of requirements, based on the operating conditions.

Types of Lubricant

There are two type of lubricants:

The coating lubricants penetrate a little and protect the exterior cables from water, which reduces wear, rust and corrosion.

Penetrating lubricants have an evaporated solvent that aids in the migration of the lubricant to the wire rope’s innermost layer It then evaporates, leaving behind a thick film of lubrication that safeguards and lubricates the wire strand.

Since most wire ropes fail on the inside out, it is crucial to ensure that the core is lubricated to a sufficient degree. We suggest a multi-step approach that includes a penetrating lubricant that is used to fill the core. This is followed by an application of lubricant coating to protect and seal the surface.

Application & Cleaning

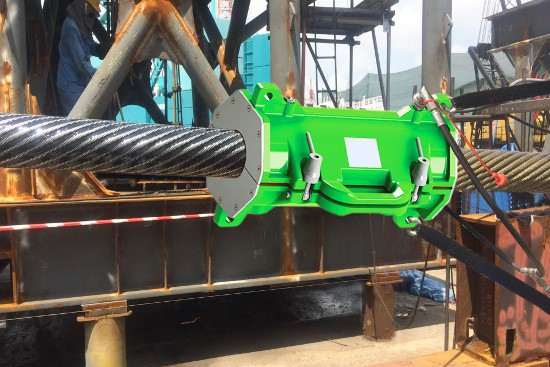

To ensure maximum penetration of the core as well as coatings, we recommend the use of an automated oil lubrication system. Additionally, the system must contain a cleaning component because cleaning the wire rope before applying lubricant is crucial. Contamination buildup can act as an abrasive, and can accelerate wear of wire rope. Additionally it clings to water and speeds up its rate of corrosion. The buildup of contaminants also impedes visual inspections.

Identify Suffering Points

Lubricant Application

Problem

Lubricating wire rope is challenging. It is usually performed by hand; it is very time-consuming and may cause a risk to safety. It can also be messy and cause housekeeping issues. To ensure proper lubrication it is essential that the lubricant is able to get into the core of wire rope. This is something which is difficult to achieve using a hand-apply.

Solution

Get rid of the messy, slow hand-applying with an effective automated system for lubrication. In just one stroke it will inject the right amount of lubricant in order to safeguard the rope while bringing it in the core.

Correct Lubricant

Problem

Abrasive wear can be seen on both sides of the rope contingent on the environment in which it is operating. Abrasive wear generally decreases the diameter of the rope, and may cause core failure as well as internal wire breaking. Thus, choosing the appropriate industrial wire lubricant that is heavy-duty is crucial to extend the life of wire rope.

Solution

Lubricants for wire ropes have three main purposes. First, they decrease the friction when wires are moved over one another. They also provide protection against corrosion in the wire’s core inside wires, as well as the exterior surface. They also prevent the wear of abrasive materials.

We have developed an assortment of penetrating and coating lubricants for wire rope to tackle the issues of corrosion, friction and abrasion. If you apply them correctly onto wire rope, the exceptional adhesive power helps them stay on the rope and create an incredibly lubricating layer between strands of wire. In addition, they are resistant to the effects of oxidation, water, and other contaminants as well as remaining flexible when used.

Environmental Impact

Problem

Wire ropes are pieces of equipment which are usually exposed to water, air and soil. In the present, certain industries are required to meet specific environmental standards, for instance, those that are part of the EPA VGP to the industry of marine. Other industries, such as forest and logging are looking to adopt the green initiative of their respective companies.

Solution

Greases and lubricants that are designed to limit the environmental impact of releases into water or soil.

In the end

Lubrication Engineers can assist in putting together an effective lubrication program for wire ropes to make them last longer, which will result in less interruptions and costs for maintenance.
